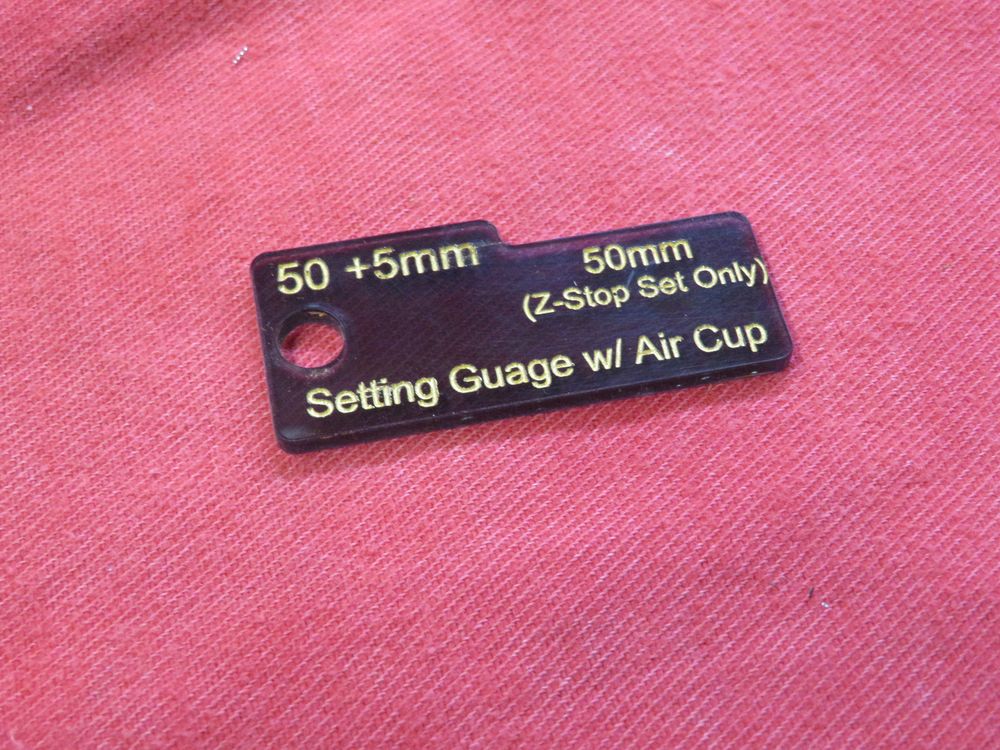

Focus setting gauge. The table with any applicable substrate fixture is moved up until the end of the Air Assist cup touched the upper portion of the gauge. The machine is set to lower the table 5mm after the zero position is set. This allows for working clearance.
