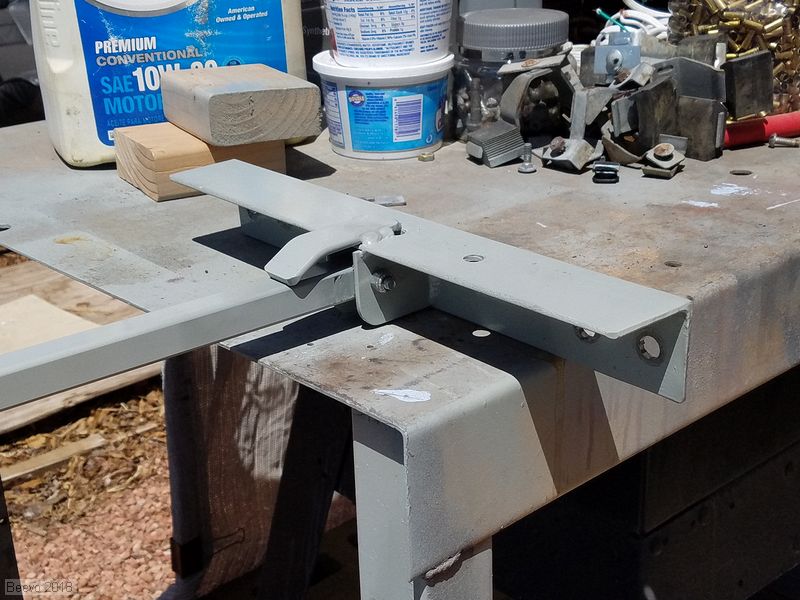

Tower end of the leg bracket. In this view if it were bolted to the tower it would be sticking straight out from the tower horizontally at 90º Tower legs would be vertical and behind the bracket. The tab touching the leg tube prevents the leg from extending past 90º
|
