Tripod Leg Braces

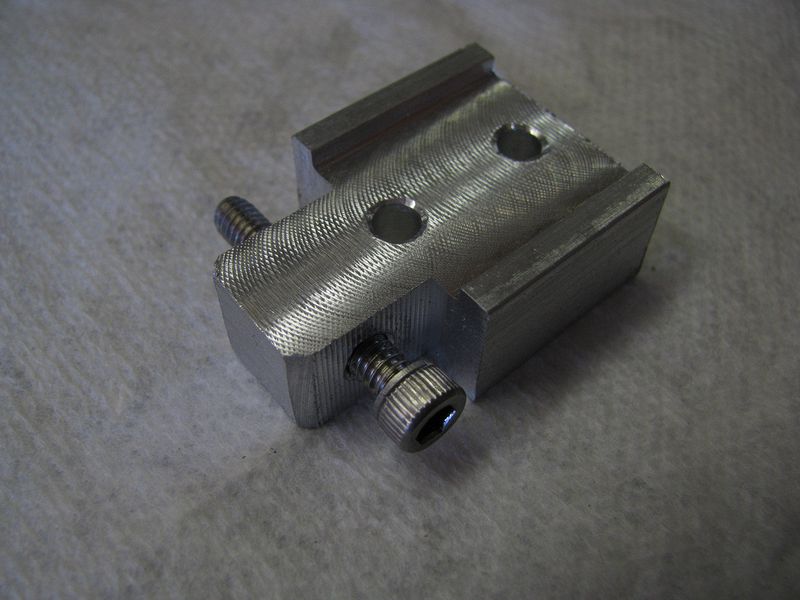

The Bracket ready for installation on the leg.

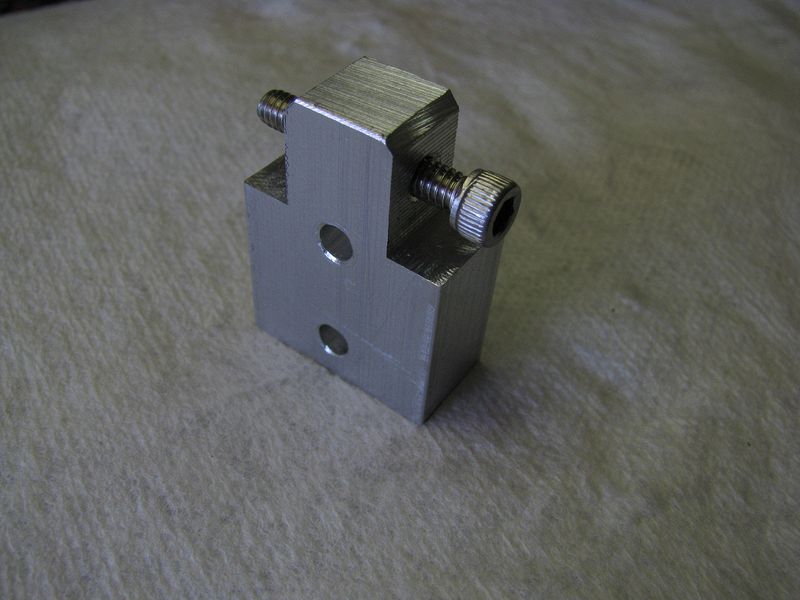

Backside view of the bracket.

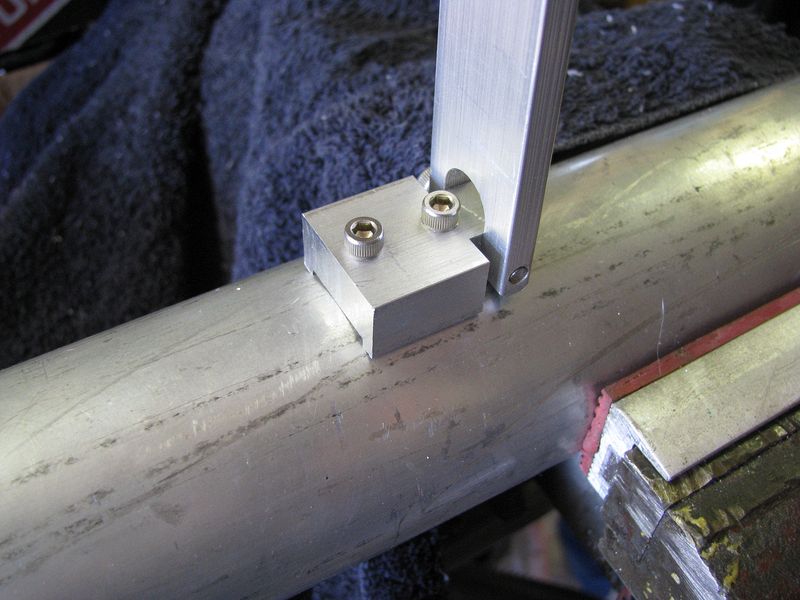

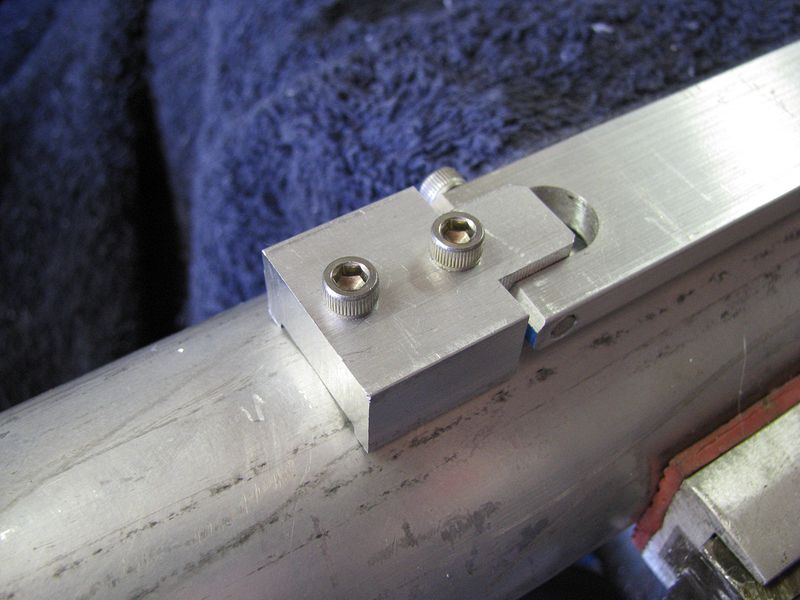

The bracket and brace attached to the leg tube and folded in the "transport" position.

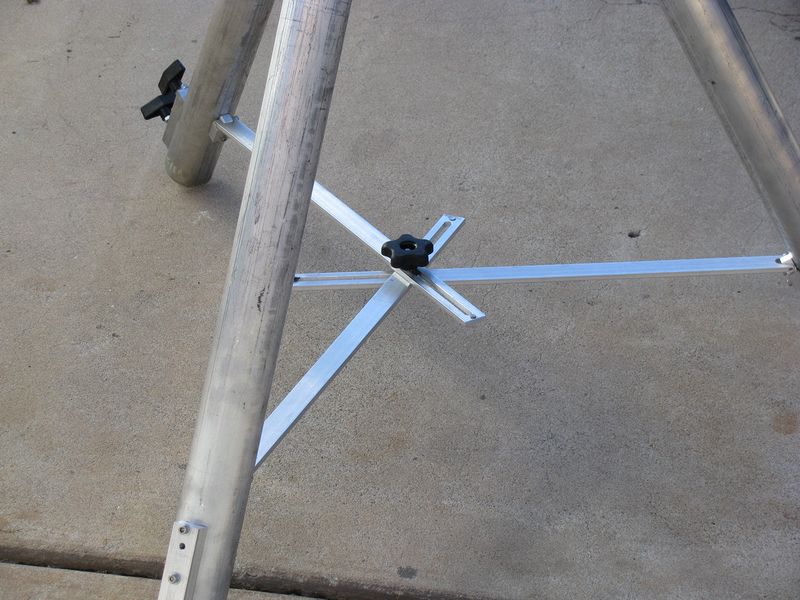

The brace in the "use" position.



Center clamping bolt, 5/16 SS carriage bolt and hard plastic knob.  Note the rare earth magnets countersunk and epoxied into the braces.  They will mate with another magnet in the leg to retain the brace in the "transport" position.

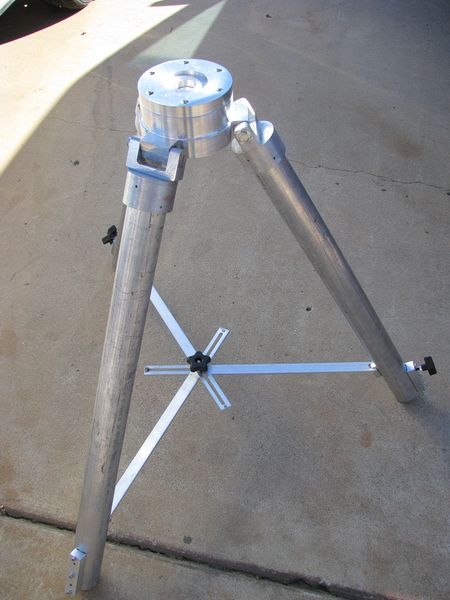

First assembly with braces.

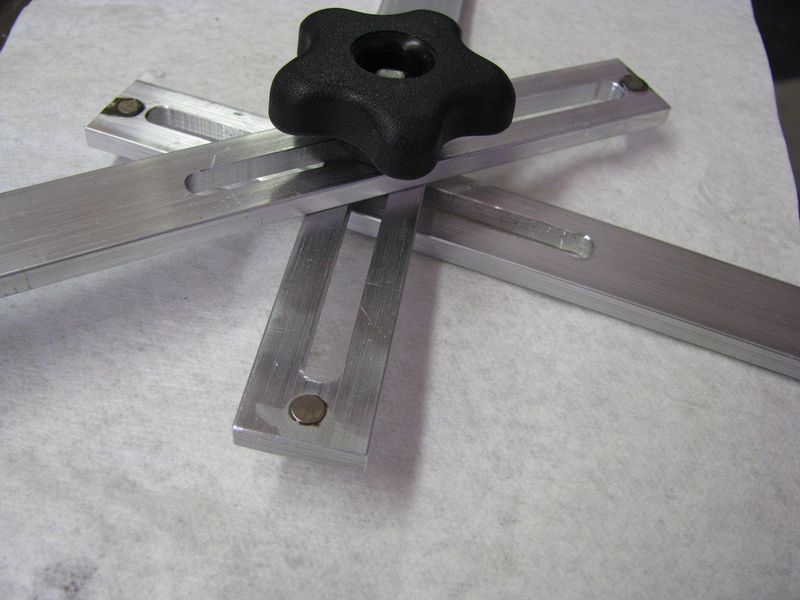

Center clamping of braces detail.
