Brake Pedals


Brake Pedal blanks

First test part, hand cranked on the big manual mill.  Tumbled for 45 minutes in the tub tumbler.


Fixture for  hand cutting the blank.  Centering boss shown.


Blank mounted.

Along the way I bought a mid-sized CNC machine (Nov '15) and proceeded to port the pedal making over to the CNC.

First CNC part (in more ways than one).  This is the result of the 6 week learning process of the machine and the associated software.  It is also the first "to be used" part that I made with the CNC mill.

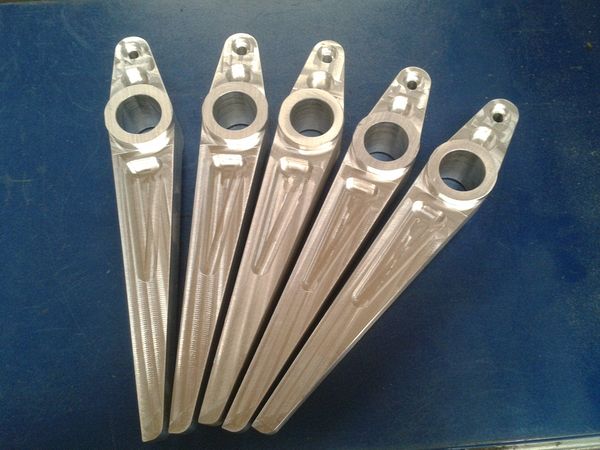

Here are the next five parts.  I need to make and weld the pedal pads on the arms and install the pivot bearings.
