Quill Adapter

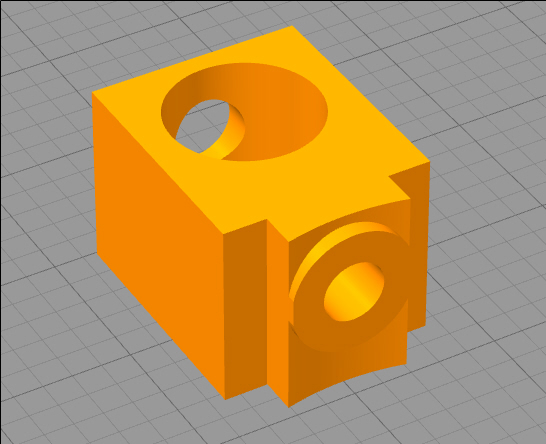

Initial design of the quill adapter. This design was based on my plans to have the ball screw located in the same place as the original Quill Stop rod. Tucking it in tight was fraught with problems...

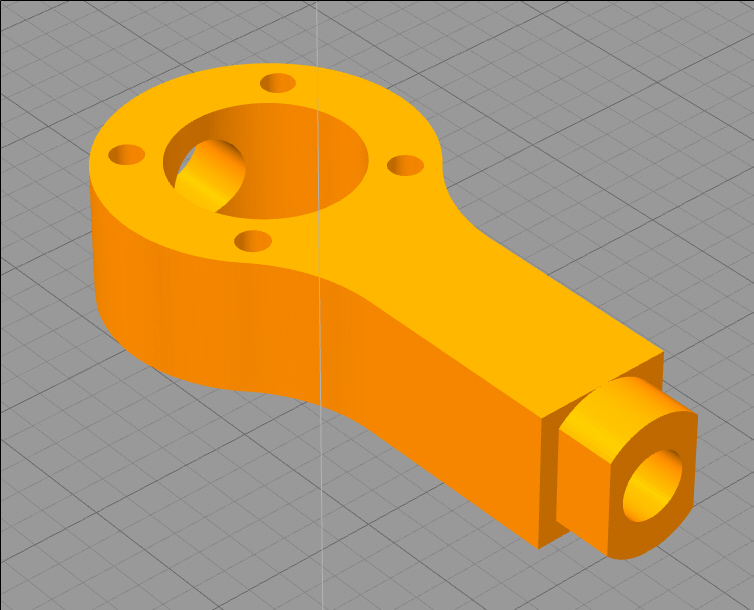

The final design of the Quill Adapter. These renderings are from Simplify 3D which I use to create the G Code files for my 3D printer.

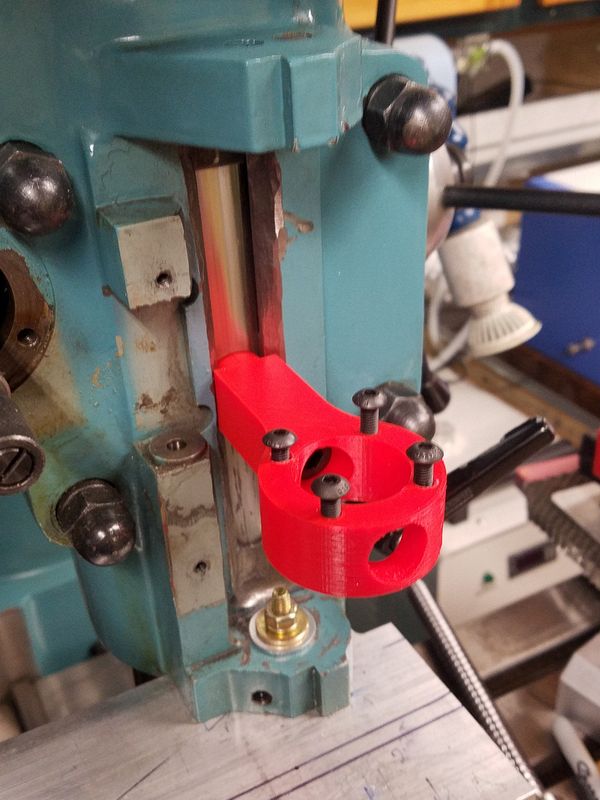

Installed 3D part for testing.

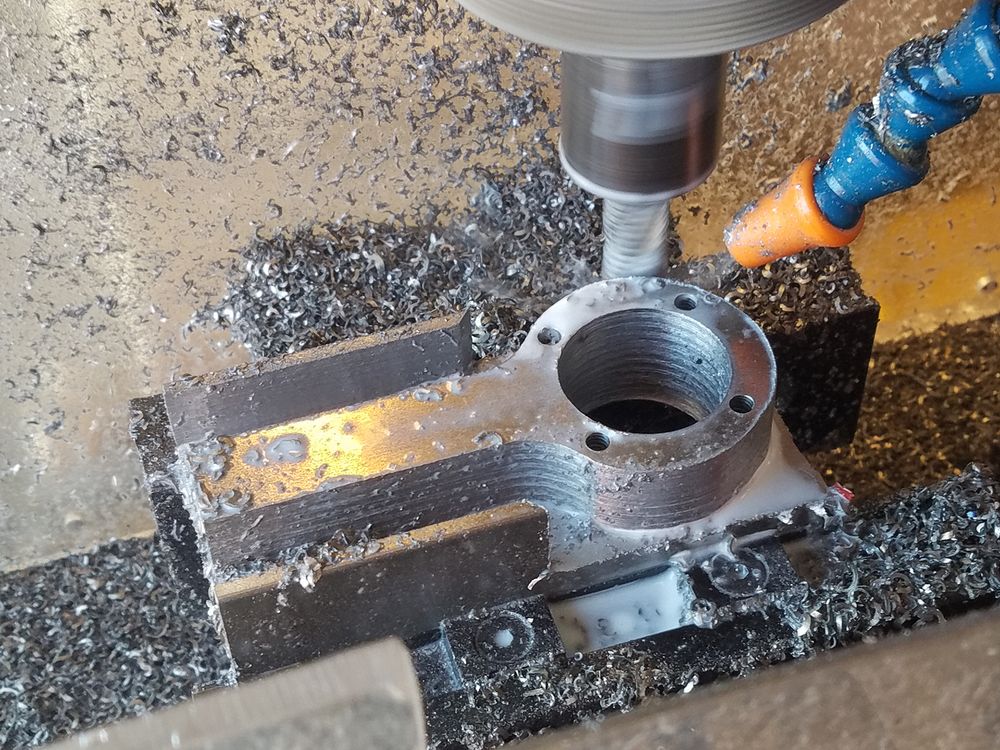

Machining the body of the Quill Adapter

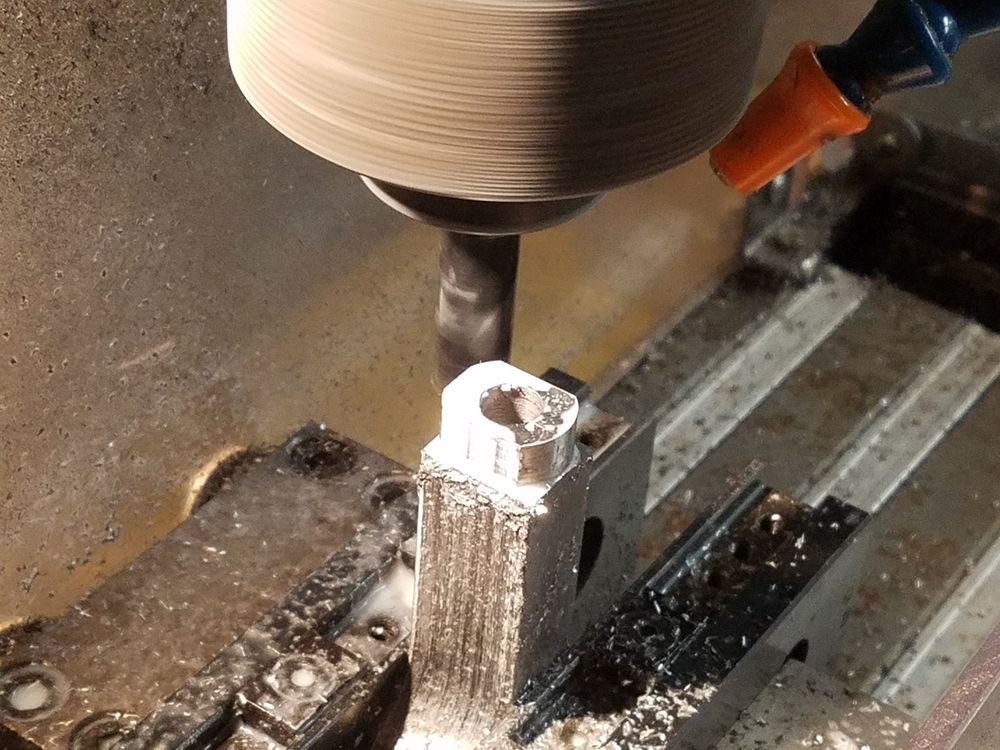

Machining the oblong nose of the quill Adapter

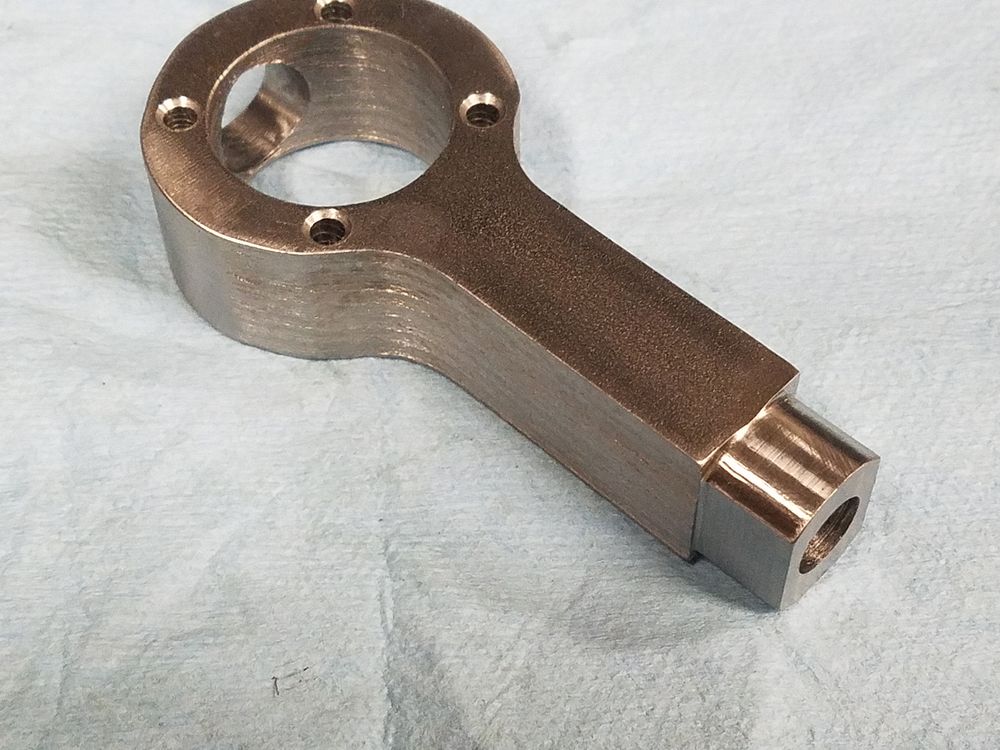

Finished part...
