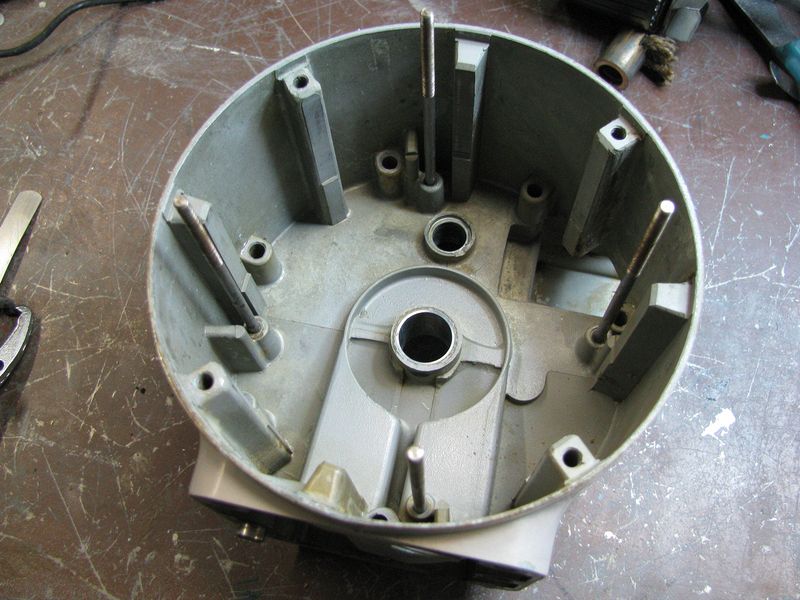

The motor housing from the motor end.  The cause of the loss of drive is the missing welch plug in the upper hole.  The plug was found in the bottom of the housing.  When the plug came out the upper transmission shaft walked back and disengaged the drive pin from the bevel gear.
